FU003 Logger Card High resolution and FU004 Logger Card High temperature

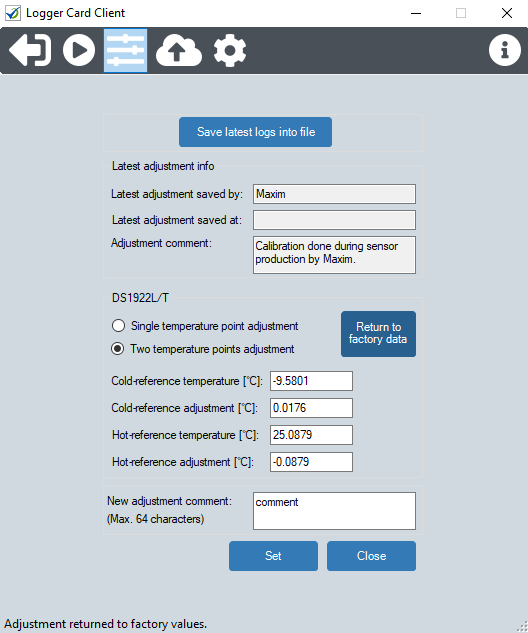

The upper form part provides information about the current calibrator, the date of calibration and a comment.
FU003 and FU004 sensors (DS1922L/T) allows to set one or two calibration points depending on the calibration performed.
To set a single point calibration:
select “Single temperature point adjustment”,
enter reference temperature value in “Hot-reference temperature [°C]” field,
enter calibration adjustment value in “Hot-reference adjustment [°C]”
optionally add a comment,
click “Set” button to save the calibration settings in the sensor.
To set two points calibration:
select “Two temperature points adjustment”,
enter reference temperature values in “Cold/Hot-reference temperature [°C]” fields (check that value in “Cold-reference temperature” field is lower than in “Hot-reference temperature” field),
enter corresponding adjustments in the “Cold/Hot-reference adjustment [°C]”
optionally add a comment.
click “Set” button to save the calibration settings in the sensor.
FU003 and FU004 sensors offer a functionality to restore the default calibration values set during production.
To restore default calibration settings,
press “Return to factory data”__button. The fields with temperature settings will be filled automatically),
optionally add a comment,
click “Set” button to save the calibration settings in the sensor.
The message box will inform about the save procedure result:
