Activity log tab

Review alarms, warnings, and other events for selected measuring points.

The Activity log tab lists events for the selected measuring points.

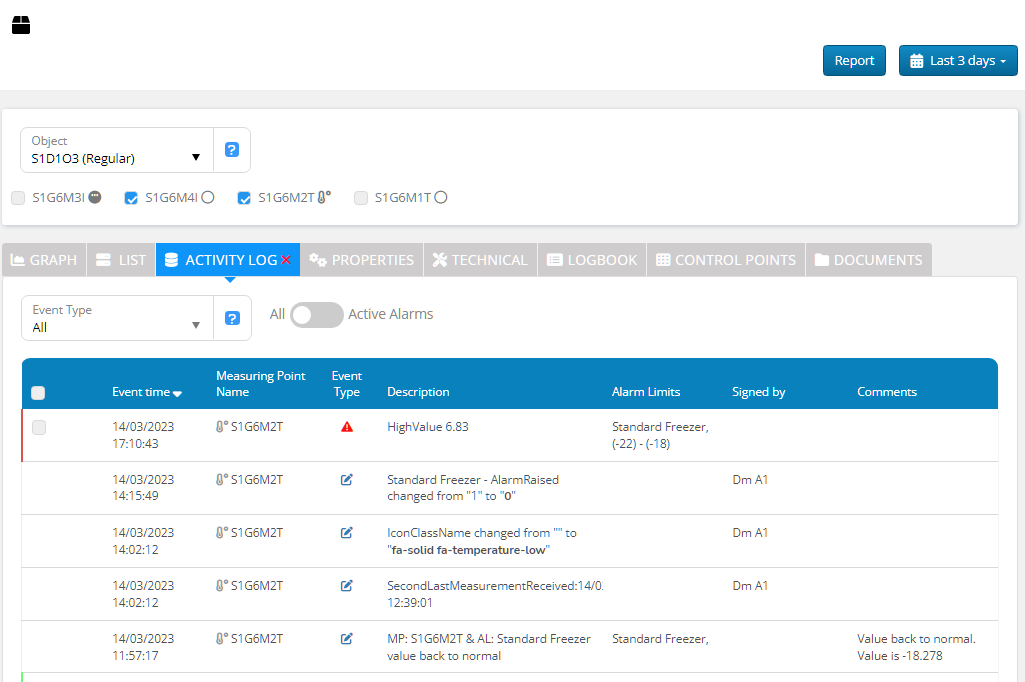

Activity log tab

The Activity Log tab displays a red X if there are active alarms or warnings in the current view. The red X is visible in the example above.

Event types

Events can include:

• alarms and warnings

• communication errors

• configuration changes

What each record includes

Typical fields include:

• event date and time

• measuring point name

• event type

• description

• alarm limit name

• signing user details

• comments

Filter and sign alarms

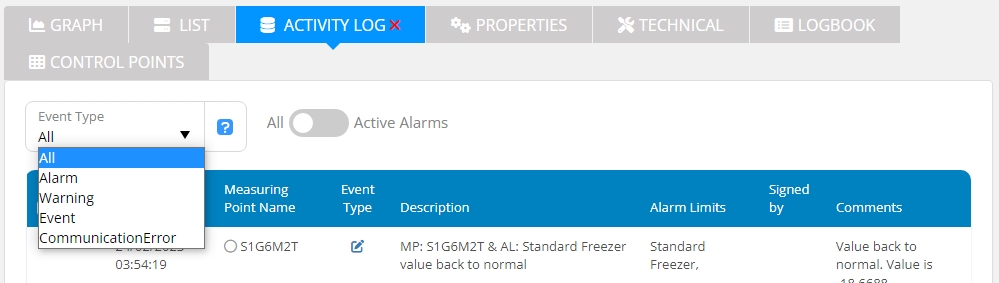

Use Event Type filters to narrow the list.

Filter by Event Type

Active alarms can be signed from this tab.

See Alarms and warnings handling.

Active alarms are shown regardless of the selected time range.

Time range selection is described in Time range selection.

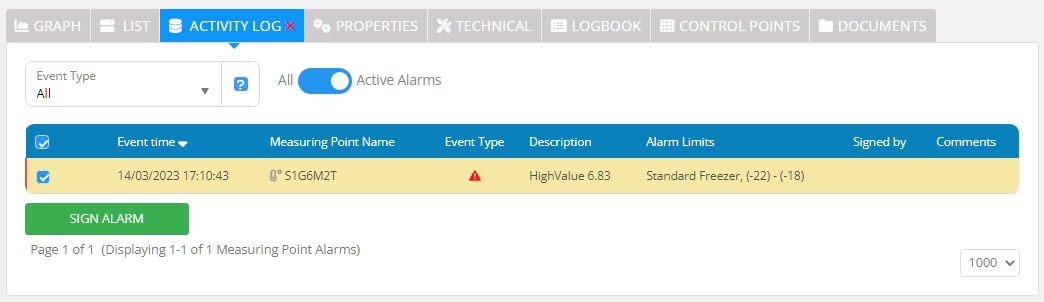

Select alarms using the leftmost checkbox column.

Select alarms

Click Sign Alarm to sign selected alarms.

Signed alarms
