Alarm signing

Sign alarms after corrective action to close them.

Alarms remain active until a user signs them.

Warnings close automatically when the alarm condition disappears.

1

Open the alarm list

On the Dashboard, click the Measuring Points button.

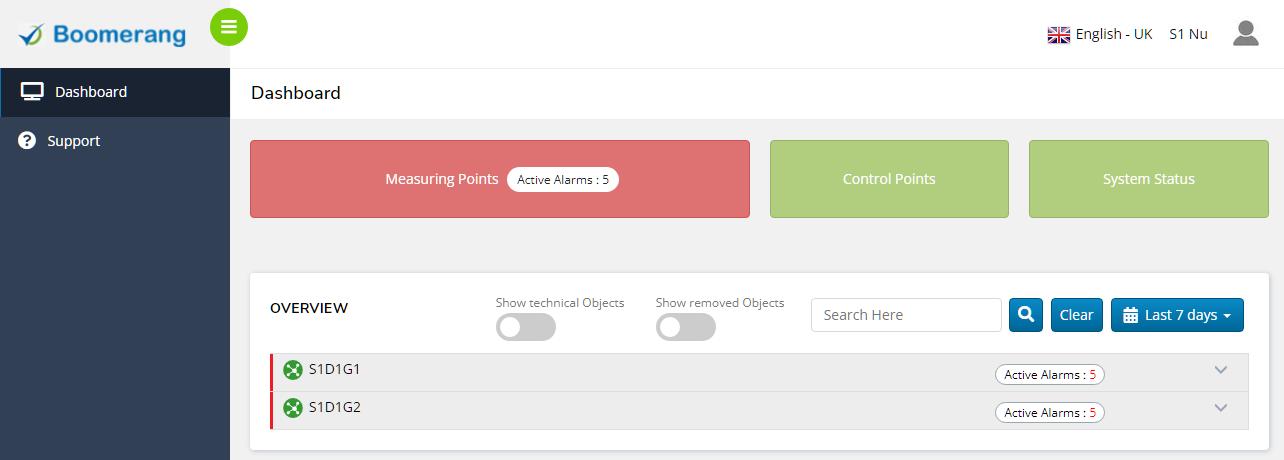

Organisation tree showing active alarms
Active alarms in groups

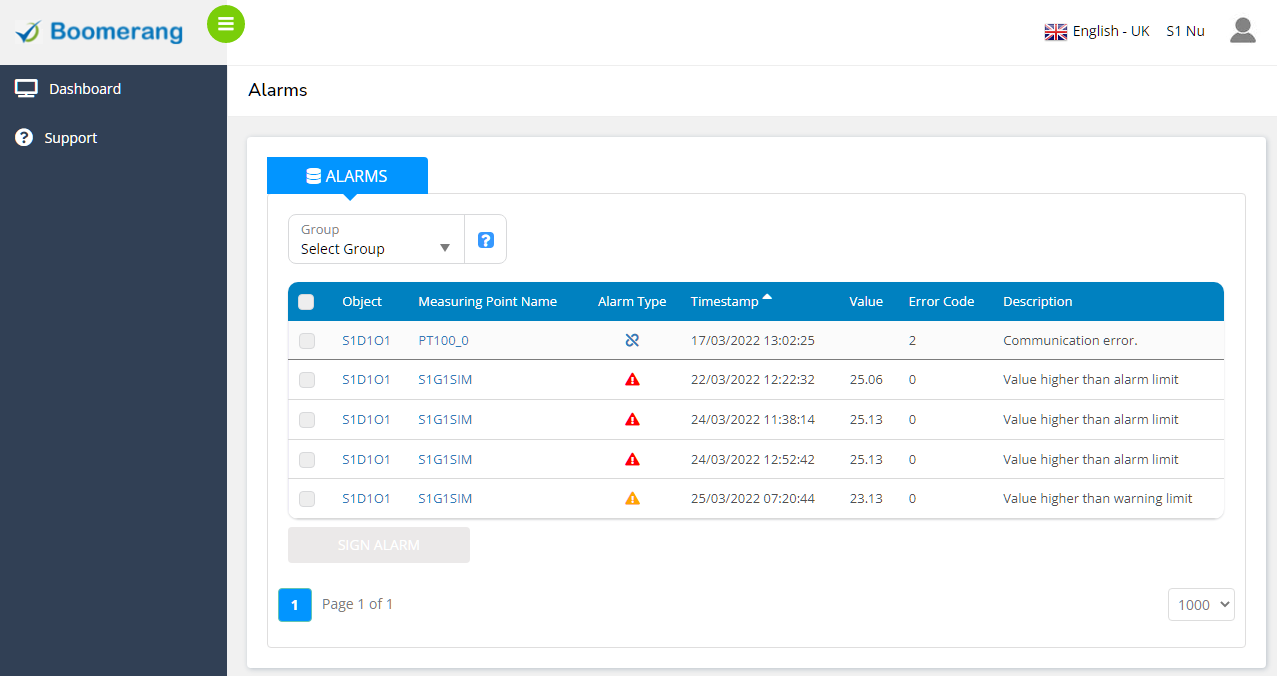

Measuring point alarms list

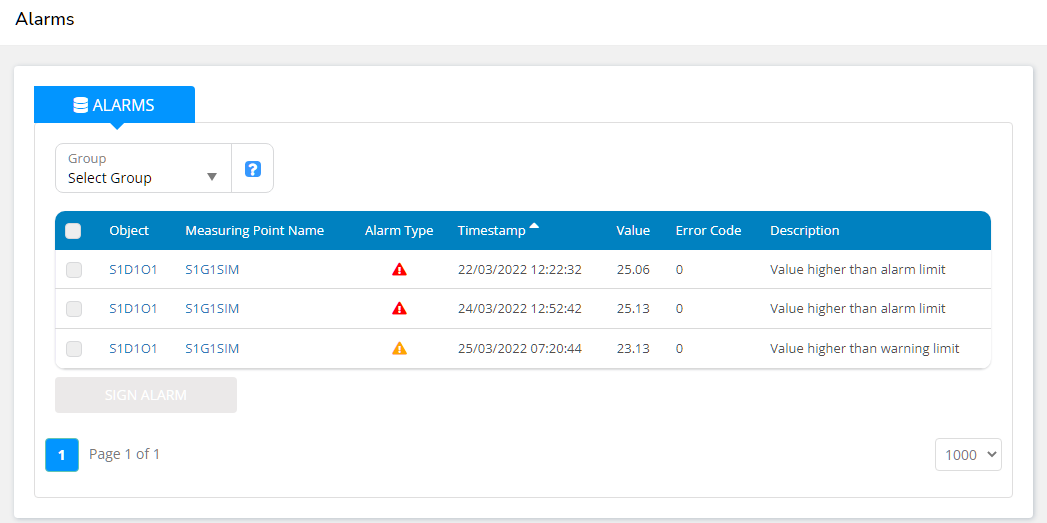

Alarm list
2

Select alarms

  • Select all using the checkbox in the header.

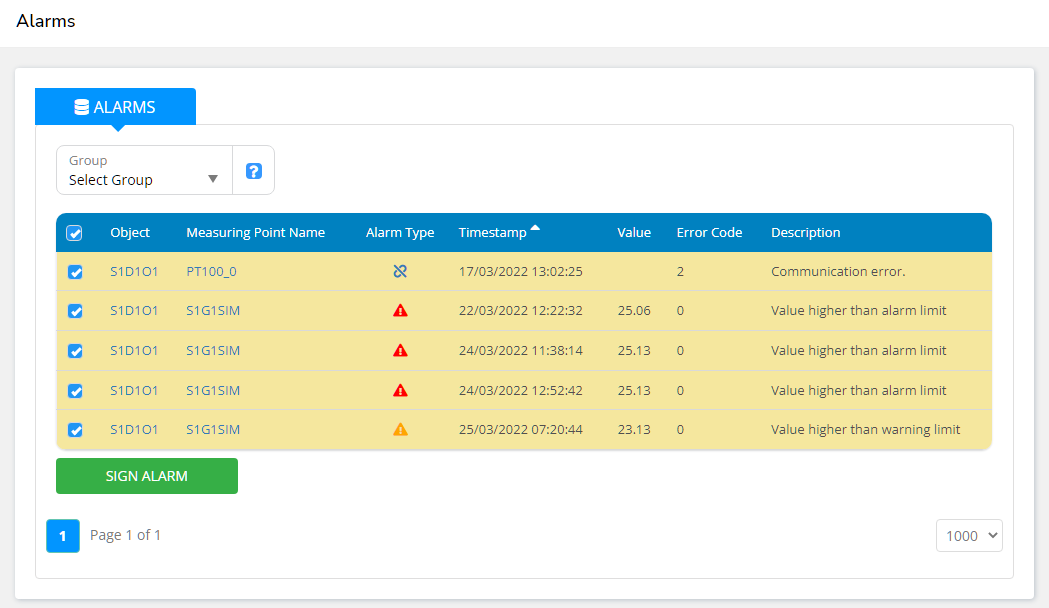

Select all alarms checkbox
Select all alarms
  • Or select individual alarms.

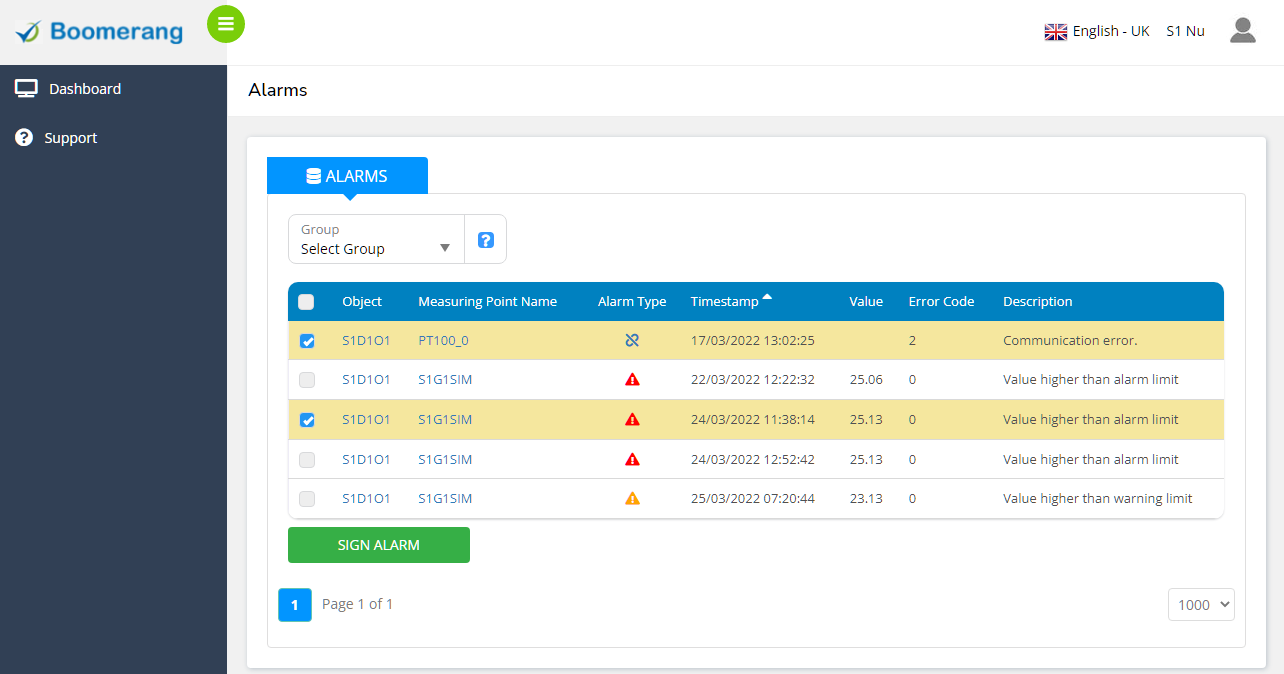

Select one alarm checkbox
Select an alarm
3

Sign

  1. Click Sign Alarm.

  2. Add a comment.

  3. Sign the action.

Signing is described in Sign.

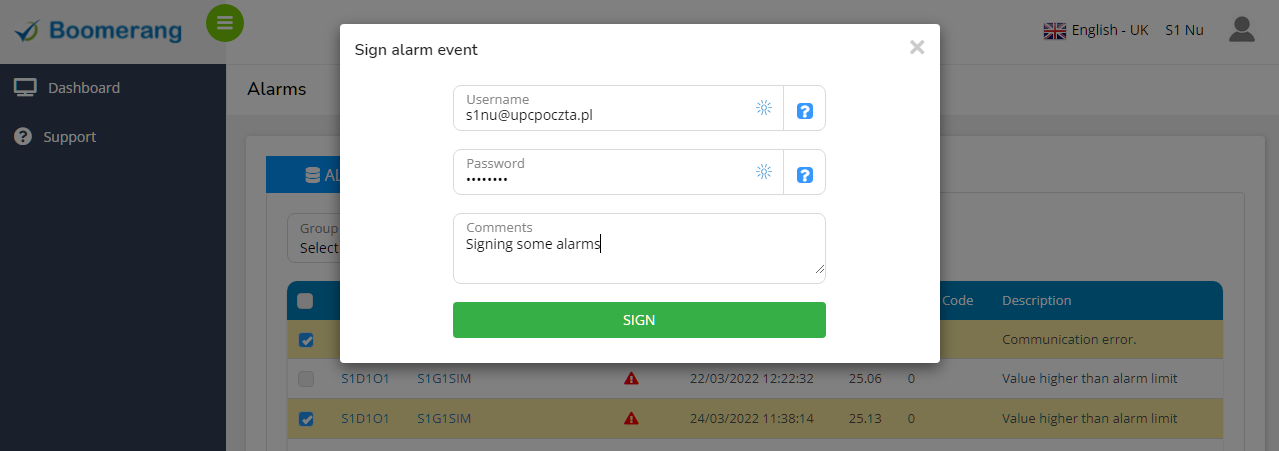

Sign Alarm dialog with comment
Sign Alarm
4

Check the result

Signed alarms disappear from the active list.

Active list after signing
Active list after signing
5

Verify in history

Signed alarms remain visible in the object’s Activity log tab when you filter to All.

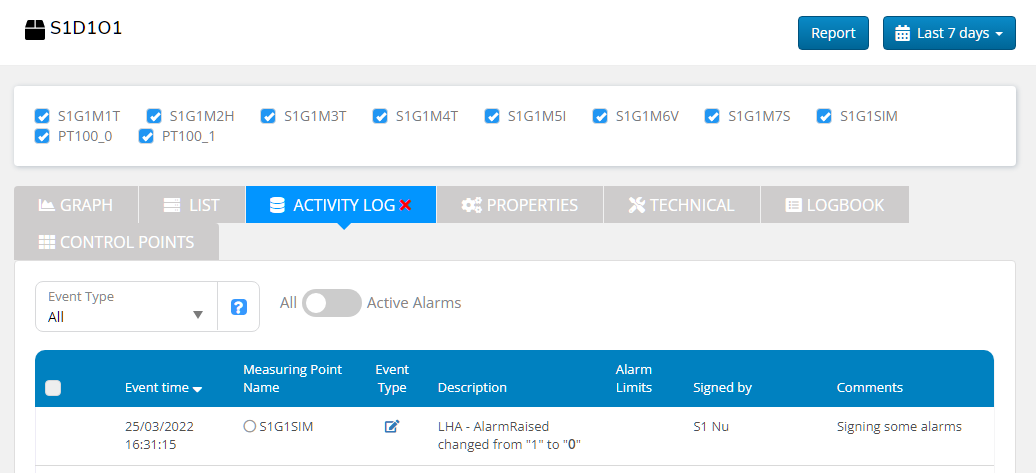

Signed alarms in history
6

Warnings

Warnings are automatically signed when the reading returns within limits.

You can also sign active alarms in the object view, from the Activity log tab.
