# Alarm presentation

Active alarms and warnings are visible in several places.

### Dashboard: Measuring Points button

* **Green**: no active alarms or warnings
* **Yellow**: at least one active warning, no active alarms
* **Red**: at least one active alarm

The number in the center shows how many active alarms are in scope.

See [Measuring Points button](https://help.boomerang3.com/boomerang-3-user-manual/dashboard/dashboard-buttons/measuring-points-button).

<figure><img src="https://content.gitbook.com/content/EANwXRnuP0ug8971viyg/blobs/erDKq79qB7PRKuegdD1l/image93.png" alt="Dashboard with green Measuring Points button"><figcaption><p>No active alarms (green)</p></figcaption></figure>

<figure><img src="https://3588014471-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEANwXRnuP0ug8971viyg%2Fuploads%2FW4063rFyCbdDQLjMPqMs%2Fimage.png?alt=media&#x26;token=3625cd7a-86eb-4c20-99a3-54c9214712ff" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/EANwXRnuP0ug8971viyg/blobs/AnRtHfIBh49FBlvhY0Ow/image94.png" alt="Dashboard showing yellow and red Measuring Points button states"><figcaption><p>Warning (yellow) and alarm (red) present</p></figcaption></figure>

### Organisation tree

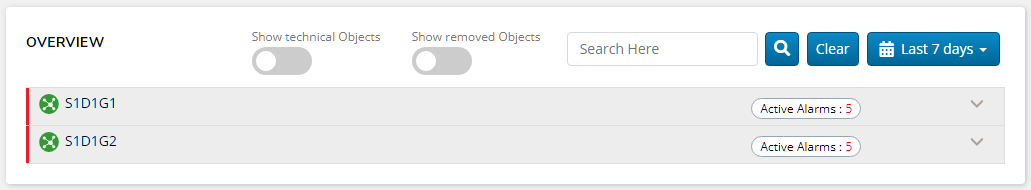

Groups with active alarms show a red marker and an alarm count.

<figure><img src="https://content.gitbook.com/content/EANwXRnuP0ug8971viyg/blobs/rEnoecRq6jbLzLDjCH0B/image95.png" alt="Organisation tree showing active alarm counts"><figcaption><p>Alarm counts in the organisation tree</p></figcaption></figure>

Examples at object level:

<figure><img src="https://3588014471-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEANwXRnuP0ug8971viyg%2Fuploads%2FI1vSDEmtIN37g3WUWGoo%2Fimage.png?alt=media&#x26;token=708c3843-1304-4c1d-8607-16ffd5ddd6ce" alt="Object showing two active alarms"><figcaption><p>Two active alarms on an object</p></figcaption></figure>

<figure><img src="https://3588014471-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEANwXRnuP0ug8971viyg%2Fuploads%2Ff1aTHxCS4CPGoJsGeowc%2Fimage.png?alt=media&#x26;token=6d52d3dd-b890-4317-859d-c87ff745926b" alt="Object showing one active warning"><figcaption><p>One active warning on an object</p></figcaption></figure>

### Alarm list

Click the [Measuring Points button](https://help.boomerang3.com/boomerang-3-user-manual/dashboard/dashboard-buttons/measuring-points-button) to open the alarm list.

<figure><img src="https://content.gitbook.com/content/EANwXRnuP0ug8971viyg/blobs/Z2roNNejGpVyV9Kvd8tg/image96.png" alt="Measuring point alarms list"><figcaption><p>Alarm list</p></figcaption></figure>

### Object view: Activity log

In an object view, alarms are also visible in the [Activity log tab](https://help.boomerang3.com/boomerang-3-user-manual/dashboard/object_view/detailed-object-view/activity-log-tab).

Click an alarm icon to see details.

<figure><img src="https://3588014471-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEANwXRnuP0ug8971viyg%2Fuploads%2FCcZMnBTUzeHR8GZlsldI%2Fimage.png?alt=media&#x26;token=f9ed2140-f4e3-426b-87e8-7eeef85d5735" alt="Alarm details in activity log" width="486"><figcaption><p>Alarm details</p></figcaption></figure>
