# Larmpresentation

Aktiva larm och varningar syns på flera ställen.

### Dashboard: Mätpunkter-knapp

* Grön: inga aktiva larm eller varningar
* Gul: minst en aktiv varning, inga aktiva larm
* Röd: minst ett aktivt larm

Siffran i mitten visar hur många aktiva larm som omfattas.

Se [Mätpunkter-knapp](/boomerang-3-anvandarmanual/dashboard/dashboard_buttons/matpunkter-knapp.md).

<figure><img src="https://3898184682-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FCwCdZYMtn8H0BKQBnUbi%2Fuploads%2F9T1J8L9zq6xmzlqzYLaM%2Fimage.png?alt=media&amp;token=ec01fc23-d221-4dc5-801b-e4e2b4d0049d" alt=""><figcaption><p>Inga aktiva larm (grönt)</p></figcaption></figure>

<figure><img src="https://3898184682-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FCwCdZYMtn8H0BKQBnUbi%2Fuploads%2F7qvNn0Yw18ku7iIip5bm%2Fimage.png?alt=media&amp;token=d21dfdc0-f750-4dff-8c7d-a2650fba7570" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3898184682-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FCwCdZYMtn8H0BKQBnUbi%2Fuploads%2FGkHBOlP31kafu6upXsEM%2Fimage.png?alt=media&amp;token=0b614e8a-23d4-4cd2-8302-e9efc74a69fa" alt=""><figcaption><p>Varning (gul) och larm (röd) finns</p></figcaption></figure>

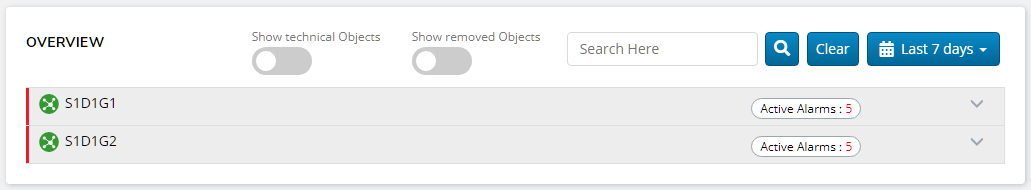

### Organisationsträd

Grupper med aktiva larm visar en röd markör och ett larmantal.

Exempel på objektnivå:

![Larmräkningar i organisationsträdet](https://content.gitbook.com/content/CwCdZYMtn8H0BKQBnUbi/blobs/mUp8pfniSkexvWr9pNRT/image95.png)

Exempel på objektnivå:

<figure><img src="https://3898184682-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FCwCdZYMtn8H0BKQBnUbi%2Fuploads%2FoRzKoQiiPKlQPCrLJ7xY%2Fimage.png?alt=media&amp;token=e76d4c22-48da-47cd-ba80-adf64f182307" alt=""><figcaption><p>Två aktiva larm på ett objekt</p></figcaption></figure>

<figure><img src="https://3898184682-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FCwCdZYMtn8H0BKQBnUbi%2Fuploads%2FLxeOOS38wG3urMtIhM5g%2Fimage.png?alt=media&amp;token=ffc4e64c-d520-4fe3-bf9a-fb2b29364925" alt=""><figcaption><p>En aktiv varning på ett objekt</p></figcaption></figure>

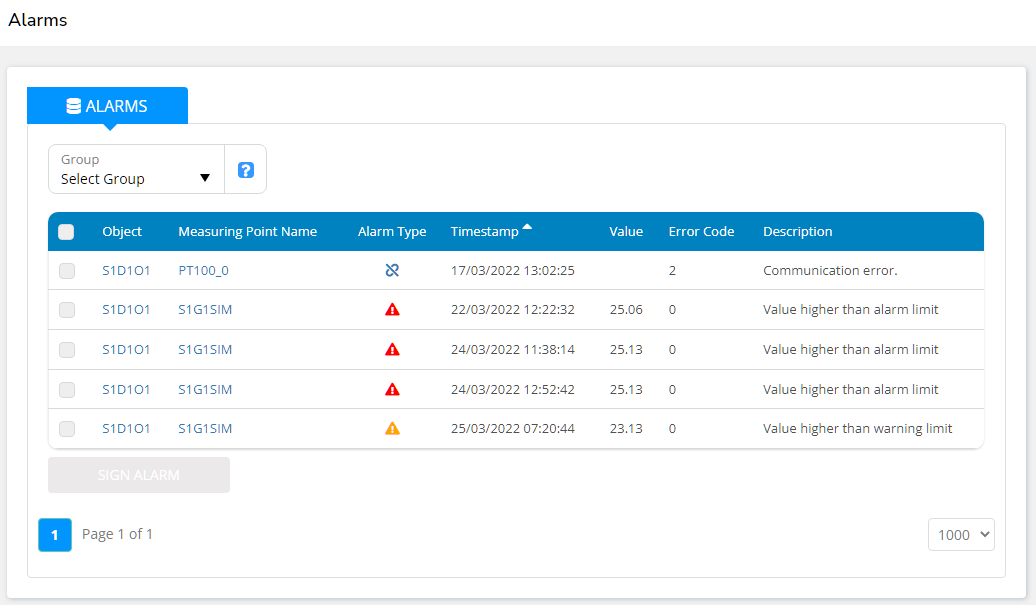

### Larmlista

Klicka på [Mätpunkter-knapp](/boomerang-3-anvandarmanual/dashboard/dashboard_buttons/matpunkter-knapp.md) för att öppna larmlistan.

![Larmlista](https://content.gitbook.com/content/CwCdZYMtn8H0BKQBnUbi/blobs/cQIcbbpT8siyDUYmOxBS/image96.png)

### Objektvy: Aktivitetslogg

I objektvyn visas aktiva larm i [Fliken Aktivitetslogg](/boomerang-3-anvandarmanual/dashboard/object_view/detaljerad-objektvy/fliken-aktivitetslogg.md).

Klicka på larmikonen för att kontrollera larminformationen.

<figure><img src="https://3898184682-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FCwCdZYMtn8H0BKQBnUbi%2Fuploads%2FVlUixUYSa6p3fiBSUxvP%2Fimage.png?alt=media&amp;token=ad3d690f-390b-49a9-b3c0-1eba8d1169a8" alt="" width="486"><figcaption><p>Larmdetaljer</p></figcaption></figure>


---
